W2009DS |
|
Description
Specification

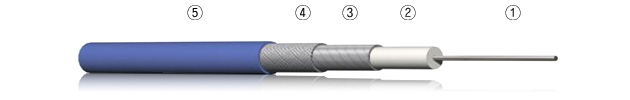

CONSTRUCTION
| NO | ITEM | MATERIAL | DIAMETER | REMARK |
|---|---|---|---|---|
| 1 | CENTER CONDUCTOR | SPC | 0.95 ± 0.02mm | |
| 2 | DIELECTRIC | Foamed PTFE | 2.73 ± 0.03mm | |
| 3 | OUTER SHIELD | AL | 3.1 ± 0.02mm | 100% (nom.) |
| 4 | OUTER SHIELD | TC | 3.4 ± 0.05mm | 90% (nom.) |
| 5 | Jacket(Optional) | FEP | 4.15 ± 0.12mm | Blue |
비고
| SPC | PTFE | AL | SPC | FEP |
|---|---|---|---|---|
| Silver Plated Copper | Polytetrafluoroethylene | Aluminum Tape | Silver Plated Copper | Fluorinated Ethyulene Propylene |
ELECTRICAL DATA
| ITEM | SPECIFICATION | ||
|---|---|---|---|
| Capacitance | 95.1 pF/m (29.0 pF/ft) (nom.) | ||
| Characteristic Impedance | 50 ± 3Ω | ||
| Conductor resistance | Max. 19.3Ω/100ft (20℃) | ||
| Operating frequency | 1GHz | ||
| Shielding Effect | 100dB (max.) | ||
| Velocity of propagation | 70.0% | ||
| RoHS Compliance | YES | ||
| Weight | 47.7 kg/km | ||
| Operating Temp | -40℃ ~ 165℃ | ||
| Maximum Attenuation | 400 MHz | 6.9 dB/100ft (0.23 dB/M) | |
| 700 MHz | 11.4 dB/100ft (0.37 dB/M) | ||
| 1,000 MHz | 35.3 dB/100ft (1.15 dB/M) | ||
